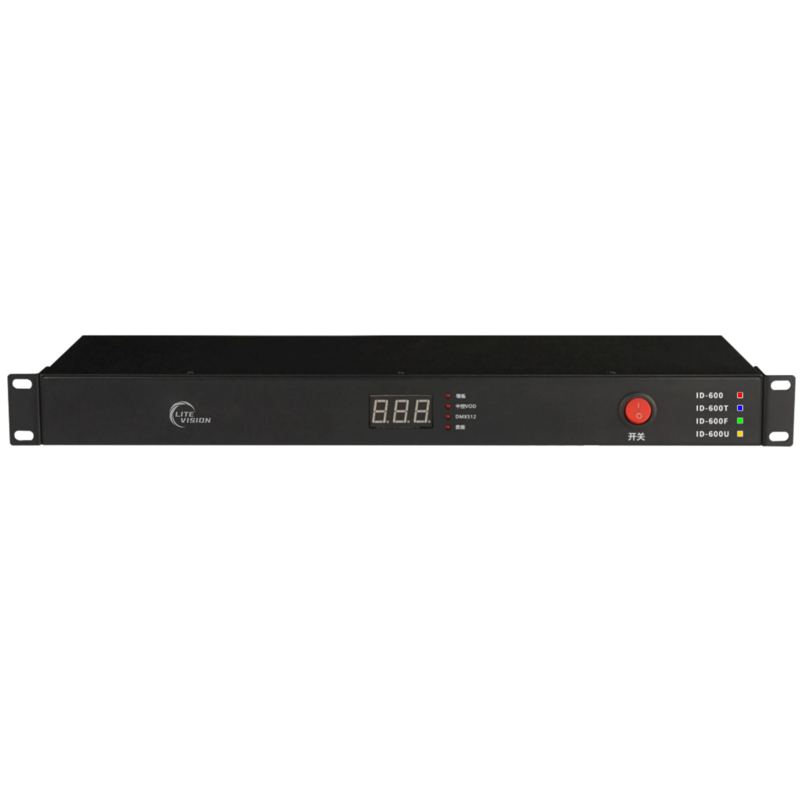

Host:
Dual-core ARM, 4G-Linux Os
1. Supports tablet/mobile control for various trackingeffects
2. Built-in 1x Ethernet port, 1x RS485 interface
3. Built-in DMX512 port (1024 channels total)
4.User-friendly software for light show editing, playback,
and sound-sync
5.Auto-tracking function: enables tracking by activatingeacon-no manual operation needed
6. Up to 32 tracking effects; automatic tracking across
different zones
7.Controls up to 60 fixtures for multi-zone tracking effects8.Zone-triggered tracking: static lights activate based ontarget location
9.Compatible with lighting consoles for effect control10.Dual-mode fixture operation: runs normal programs ortracking effects11.Coverage up to 600m', scalable with base stationquantity
12.Tracks up to 4 targets simultaneously (depends on
beacon count)13.Dimensions: 440x220x44mm (excluding bracket)

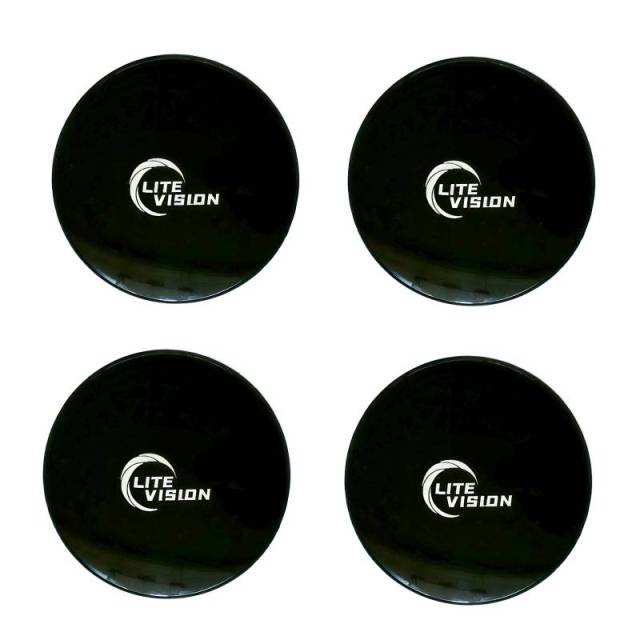

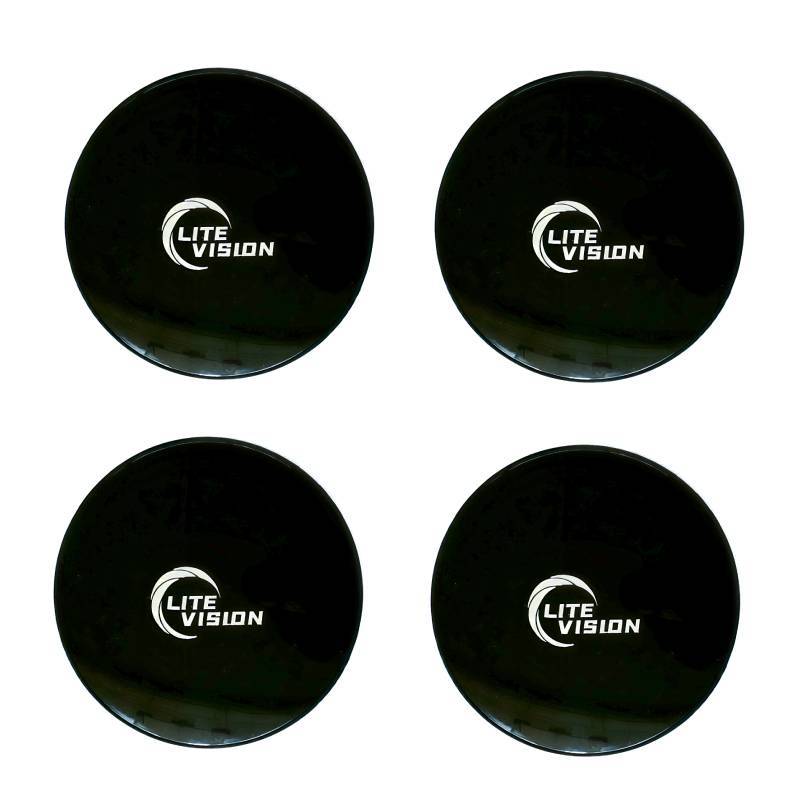

Signal base station:
Supports LAN communication, built-in 100M switch
2. Voltage monitoring, anti-reverseprotection
3.Power supply [9]V@standard Ac110.220 to 9V power supply
4. Power consumption 1.5W@LTP.
AC:1.35W@LTP-B
5.7 RF frequency bands from 3.5GHz to
6.5GHz, adjustable transmission gainrange of 0~13.5dB
6.Maximum communication distance 25
meters @ stage environment
(recommended 15 meters )
7. Unique lD, encrypted transmission
8.Installation method: hanging
9.Base Station diameter 170mm
10.Butterfly state antenna

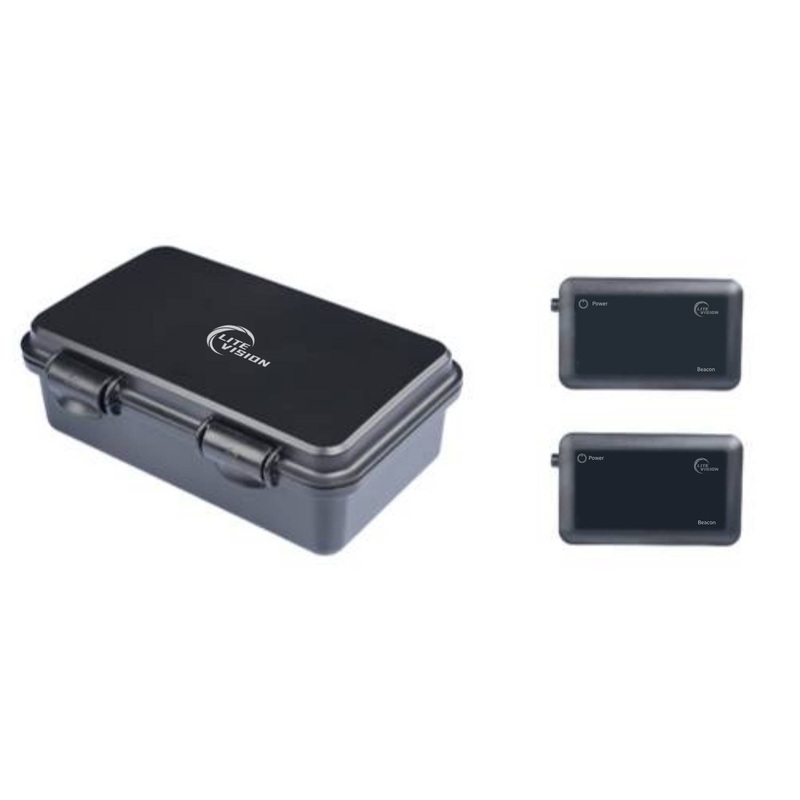

Beacon/Tag:
1.Rated power: 0.5W:
2.RF power: 0dBm/1mW;
3.Update frequency: 10ms;
4.Lithium Battery capacity:350mA;
5.Operating temperature: -20° C to!
70°C.
FAQ for LITEVISION auto-light-tracking system:
Â
Q: Do I need to modify fixtures for tracking?
A: No. Any DMX-moving head can be switched to tracking mode directly.
Â
Q: How to track multiple people?
A: Each person carries a tag for individual tracking.
Â
Q: Does it work if they run?
A: Yes.
Â
Q: Is it compatible with DMX consoles?
A: Yes.
Â
Q: Is it easy to set up?
A: Yes. Place 4 base stations to form the tracking area. Connect them and the host via Ethernet. Assign fixtures in the host.
Â
Q: How to use followspots for light shows?
A: Switch modes instantly in the software.
Â
Q: Can different lights track across zones?
A: Yes. Divide stage into zonesâlights auto-switch when tags move.
Q: I want to track a large area 30x30m. How many base stations can I add at most?Â
A: 8 base stations.
Q: What's the appropriate spacing between base stations?
A: 15m distance is better.
Q: Do I need to modify fixtures for tracking?
A: No. Any DMX-moving head can be switched to tracking mode directly.
Q: How to track multiple people?
A: Each person carries a beacon(tag) for individual tracking.
Q: Does it track if the people(with beacon) runing?
A: Yes.
Q: Is it compatible with DMX consoles?
A: Yes. Any DMX consoles no problem.
Q: Is it easy to set up?
A: Yes. Place 4 base stations to form the tracking area. Connect them and the host via Ethernet. Assign fixtures in the host.
Q: How to use tracking light for light shows?
A: Switch modes instantly in the software or DMX console.
Q: Can different lights track different zones?
A: Yes. Divide stage into zonesâlights auto-switch when beacon(tags) move.
Q: What's the coverage of one base station?
A: The base version covers 200㥠with precision(4pcs Signal Base Station).
Q: How many signal base stations can be supported at most?
A: Maximum 8pcs base station in 900sqm. 30mĂ30m square
