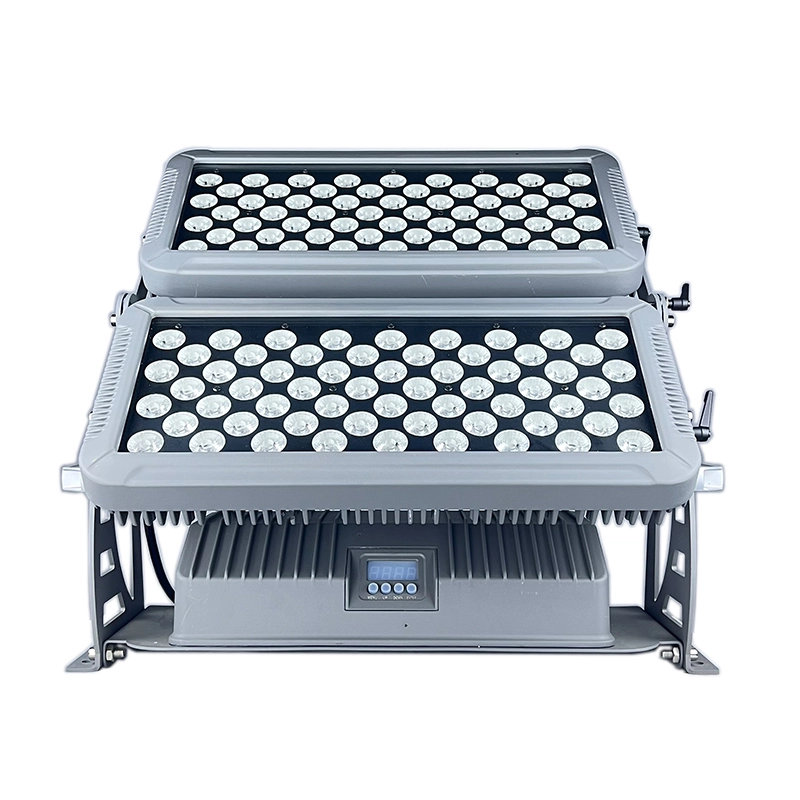

Archi DH1210 Outdoor RGBW Wash Light
Outdoor RGBW LED Wash Light for Professional Project Procurement
LiteVision's Archi DH1210 is built for buyers sourcing outdoor city color wash fixtures for venues, event rental fleets, facade lighting, and distributor inventory. The fixture uses 120 pieces of 10W RGBW 4-in-1 LEDs, IP65-rated housing, DMX512 control, and smooth linear dimming for large-surface color wash applications.
For teams comparing a dependable led wash light supplier, the DH1210 gives procurement managers a practical specification base: weather-resistant construction, optional beam angles, aluminum cooling, manual tilt adjustment, and support for floor placement or fixed mounting.
LiteVision also supports project buyers looking for a stage lighting equipment supplier that can discuss product configuration, sample checks, batch consistency, and export packing requirements before a purchase order is finalized.
Media And Specifications
Archi DH1210 Product Evaluation Details
Description
The Archi DH1210 is a heavy-duty outdoor LED wash fixture for broad color coverage across building facades, concert stages, stadium areas, broadcast production settings, and outdoor entertainment spaces. Its RGBW LED engine supports saturated colors plus white balance, while the IP65 housing and aluminum cooling structure help buyers evaluate it for repeated exterior use.
Procurement teams can use the fixture as a candidate for rental fleet expansion, distributor stock, or project-based installation where DMX control, smooth dimming, adjustable tilt, and optional optical angles are part of the technical approval process.
Product Specifications
| Product Model | Archi DH1210 Outdoor LED Wash 120x10W RGBW City Color |
|---|---|
| Power Supply | AC100-240V, 50/60Hz |
| Listed Power | 960W, confirm final configuration before order approval |
| LED Source | 120 x 10W 4-in-1 RGBW LEDs, optional 90 x 10W RGBW version listed |
| LED Life Span | 50,000 hours listed; flicker-free operation noted for broadcast TV and film work |
| Beam Angle | 25° standard; 8°, 15°, 45°, and 60° options listed |
| Strobe | 0-25Hz high-speed shutter and strobe effect with variable speed |
| Dimming | 0-100% smooth linear LED dimming |
| Control | DMX512, master-slave, sound activated, auto operation, preset programs, DMX recorder and edit function |
| Cooling And Housing | Integrated aluminum cooling system and aluminum housing |

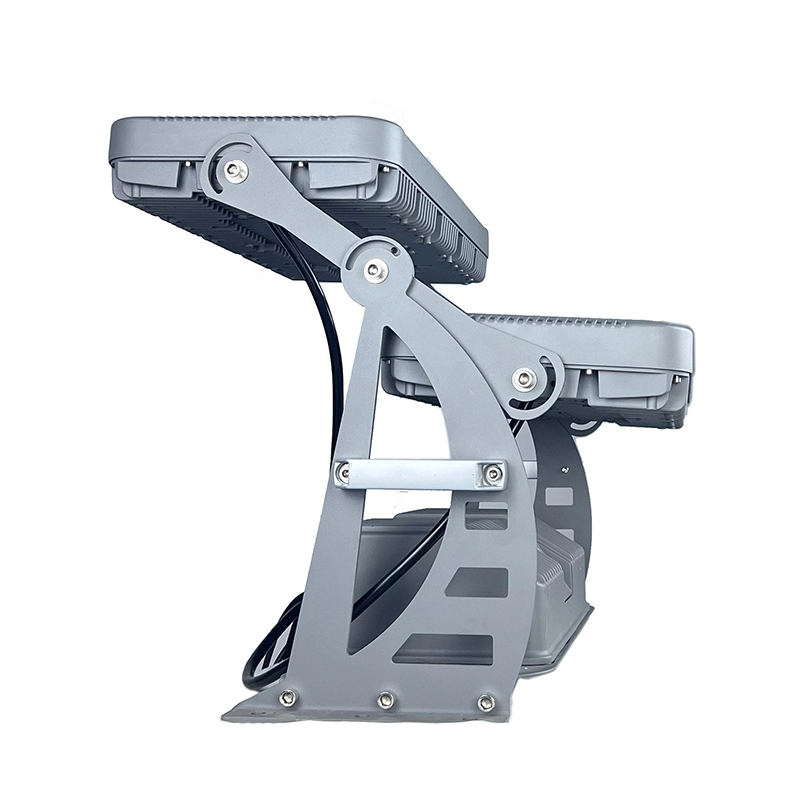

| Mounting And Position | Manual tilt angle adjustment, two side handles, floor placement or fixed support installation |
| Operating Temperature | -25°C to 45°C ambient temperature |
| IP Rating | IP65 |
| Weight | N.W. 29kg, G.W. 31.5kg |
| Fixture Size | 52(D) x 61(W) x 57cm |
Core Supply Advantages
Outdoor Project Fit
IP65 construction, aluminum housing, and adjustable mounting support both temporary events and fixed outdoor placements.
Control-Ready Configuration
DMX512, preset programs, smooth dimming, and variable strobe settings help technical teams integrate the fixture into existing show workflows.
Procurement Clarity
Clear specifications, visible product images, and contact support make it easier to review samples, approve optics, and prepare batch requirements.
Technical Reading
Related Outdoor Wash Light Articles
Outdoor Wash Light Design Features for Broadcast and Film Production Lighting
A practical reference for teams evaluating flicker behavior, color control, outdoor housing, and stable wash output in camera-facing production environments.
Read ArticleEssential Technical Specifications of LiteVision's DH1210 LED Stage Lighting Equipment
A specification-focused article covering the DH1210 platform, useful for buyers preparing comparison sheets, approval documents, or distributor training notes.
Read ArticleNavigating LiteVision's Outdoor LED Stage Lighting Range for Venue Professionals
A range-selection guide for venue teams comparing outdoor LED fixtures by use case, environment, control needs, and long-term procurement planning.
Read ArticleBuyer Feedback
Verified Procurement Feedback
â â â â â
Rental Fleet Purchasing Manager, Germany
"We evaluated the DH1210 for outdoor event stock because the IP65 body, RGBW source, and DMX workflow matched the type of temporary stages our clients request. The specification sheet made sample testing straightforward."
â â â â â
Lighting Systems Integrator, United Arab Emirates
"For facade lighting and venue work, we needed a supplier who could discuss beam angle choices and control details before order confirmation. The DH1210 gave our engineering team clear points to check."
â â â â â
Stage Equipment Distributor, Mexico
"Our team compared weight, housing, LED configuration, and dimming behavior before adding an outdoor wash option to our catalog. LiteVision's product information helped us prepare internal sales notes."
Procurement FAQ
Questions Buyers Ask Before Ordering
What makes the Archi DH1210 suitable for outdoor procurement projects?
The Archi DH1210 combines IP65-rated housing, aluminum heat management, RGBW color mixing, and DMX512 control in a fixture intended for exterior stages, facades, venues, and temporary event structures. Procurement teams can evaluate it for projects that need weather-resistant wash output, repeatable control behavior, and a fixture body that can be positioned on a floor or fixed to a support.
Which control modes should buyers confirm before ordering?
The listed control options include DMX512, master-slave, sound activated, auto operation, preset internal programs, and an integrated DMX recorder and edit function. Buyers should confirm channel mode, address setting workflow, console compatibility, and any required control accessories before approving a sample or project batch.
Can the beam angle be matched to different venue layouts?
The standard beam angle is listed as 25 degrees, with 8, 15, 45, and 60 degree options noted for project needs. Narrower angles can support longer throw or more concentrated areas, while wider angles can suit short-distance facade coverage or broad surface washing. Final angle selection should be checked against mounting distance and target surface size.
What sample checks are useful for distributors and rental companies?
Useful checks include RGBW color consistency, dimming smoothness, fan and thermal behavior, fixture response under DMX programming, housing finish, bracket adjustment, connector layout, and packing protection. For rental inventory, teams should also check handling points, labeling, and setup speed across repeated installations.
How should buyers compare this fixture with other LED wash lights?
Comparison should focus on LED configuration, listed power, optical angle, IP rating, dimming curve, strobe range, control modes, fixture size, net weight, and the operating temperature range. Buyers should also compare whether the supplier can provide consistent batch documentation and product images for internal approval.
What information should be included in a project inquiry?
A clear inquiry should include application type, installation environment, quantity, voltage requirements, preferred beam angle, control system, expected mounting method, packing requirements, destination market, and any sample evaluation schedule. This helps the supplier confirm whether the Archi DH1210 configuration fits the project.
