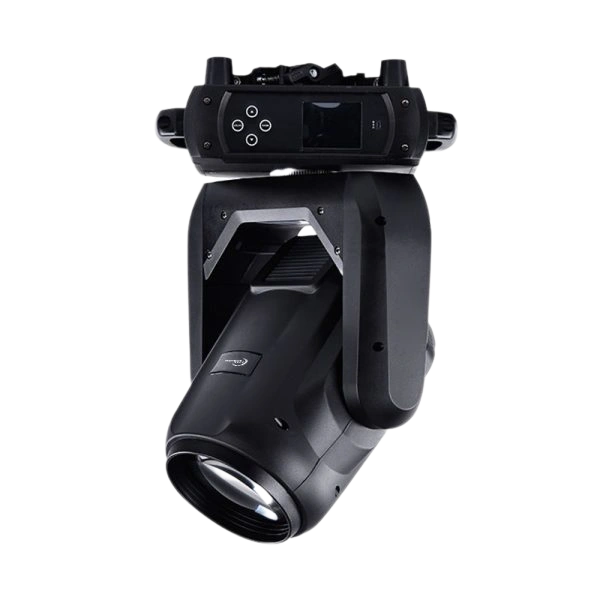

Sword 380MINI 371W Mini Beam Moving Head for Stage Lighting Procurement
The Sword 380MINI is a compact discharge-lamp beam moving head built for buyers who need sharp output, reliable DMX control, and practical carton data before placing repeat orders. It uses an OSRAM SIRIUS HRI 371W S lamp, an 8000K color temperature, and a fixed 1.8 degree beam angle for concentrated aerial effects in clubs, event rentals, concert rigs, theaters, and entertainment venues.
For professional stage lighting oem sourcing programs, this model gives procurement teams a defined technical base: 100-240V power input, 550W rated power, color and gobo wheels, dual rotating prisms, DMX512 operation, 16-bit pan and tilt movement, and carton dimensions suitable for import planning.
As a mini moving head light factory supply option, LITEVISION supports project buyers, distributors, and rental-channel purchasers with product details that can be checked before sample evaluation, batch planning, and regional sales preparation.
Product Media and Specification Review
Compact optical performance, control compatibility, and export packing details are grouped for lighting distributors and project procurement teams evaluating the Sword 380MINI before quotation.
Description
The Sword 380MINI is designed for concentrated beam work where a compact fixture still needs strong output, fast movement, and layered aerial effects. The optical system combines a 371W discharge lamp, high-quality lens design, color wheel, fixed gobo wheel, rotating prisms, frost effect, smooth dimming, and multi-speed strobe control. For procurement teams, the specification set is clear enough to compare against venue installation needs, rental case planning, and distributor catalog positioning.
Product Specifications
| Model | Sword 380MINI 371W mini beam moving head |
|---|---|
| Product Category | Discharge-lamp moving light, indoor moving head beam light |
| Power Supply | 100-240V, 50/60Hz |
| Rated Power | 550W at 90V |
| Lamp | OSRAM SIRIUS HRI 371W S, listed lamp rated life 1500H |
| Color Temperature | 8000K |
| Beam Angle | 1.8 degree fixed focus |
| Color System | 1 color wheel with 13 colors plus white, half-color effect, bidirectional rainbow effect |
| Gobo System | 1 fixed gobo wheel with 14 gobos plus white, gobo dithering and arbitrary positioning |
| Prisms | 8-facet rotating prism and 24-facet honeycomb rotating prism, with overlap function |
| Control | DMX512 controller, 3-pin XLR signal input and output |
| Movement | Pan 540 degrees, tilt 270 degrees, 16-bit precision scan |
| Fixture Size | 492.5 x 313.1 x 255 mm |
| Packing | Carton 580 x 520 x 405 mm; N.W. 14 kg; G.W. 15.5 kg |
Repeatable Specification Base
Clear lamp, beam, movement, control, and packing data help importers compare samples and build product sheets for regional sales teams.
Venue-Ready Beam Effects
Color, gobo, dual prism, frost, dimming, and strobe functions support compact beam packages for clubs, concerts, theaters, and event rental stock.
Procurement Communication
Buyers can confirm sample requirements, carton planning, fixture profiles, and regional project needs through the LITEVISION contact channel.
Procurement Reading for Beam Fixtures
These LITEVISION resources help buyers compare lamp choice, DMX control behavior, and moving beam effect design for entertainment venues.
The Versatility of the OSRAM 371W Moving Beam in Stage Lighting
A practical overview for buyers comparing 371W discharge-lamp beam fixtures for aerial effects, venue coverage, and repeatable rental performance.
Read technical articleKey Features of the DMX512 Mini Beam Light for Entertainment Venues
Useful for system integrators and distributors checking DMX512 operation, fixture control expectations, and venue deployment considerations.
Read technical articleEnhancing Stage Designs with the Sharpy Beam Moving Head Technology
A design-focused reference for evaluating narrow-beam looks, prism layering, gobo effects, and compact fixture roles in modern rigs.
Read technical articleVerified Procurement Feedback
Procurement teams often evaluate compact moving heads by optical effect density, packing data, control clarity, and repeat-order communication.
5/5 rating
"The carton size, lamp data, and DMX details made the Sword 380MINI easier to qualify for our rental catalog. The beam angle and prism package fit our compact fixture requirement."
Procurement Manager, Event Rental Distributor
United Arab Emirates
5/5 rating
"For club installation projects, we needed a small beam fixture with strong color and prism functions. The listed 371W OSRAM lamp and 1.8 degree beam helped our technical team compare options quickly."
Technical Purchasing Lead, Lighting Integrator
Spain
5/5 rating
"The specification sheet gives our sales staff enough information for project quotations, including weight, carton dimensions, pan and tilt range, and DMX512 signal interface."
Product Sourcing Director, Stage Equipment Importer
Mexico
Sword 380MINI Procurement FAQ
Technical answers for buyers comparing compact moving head beam lights for distributor stock, venue projects, and rental channel supply.
What makes the Sword 380MINI suitable for distributor procurement?
The fixture combines a 371W discharge lamp, fixed 1.8 degree beam angle, DMX512 control, dual rotating prism effects, and a 14 kg net weight. These details help distributors position one compact beam unit for clubs, touring events, theaters, and rental inventories.
Which lamp and color temperature does this moving head use?
The Sword 380MINI uses an OSRAM SIRIUS HRI 371W S lamp with 8000K color temperature. The product page lists a rated lamp life of 1500 hours, helping buyers plan lamp inventory and maintenance schedules.
How should buyers evaluate beam and effect performance before ordering?
Buyers should confirm beam sharpness at the intended throw distance, prism overlap behavior, color-wheel response, gobo positioning, dimming smoothness, strobe speed range, and movement noise under realistic venue or rental conditions.
What control interface is available for installation teams?
The fixture supports DMX512 controller operation and uses 3-pin XLR signal input and output. Project teams should confirm channel requirements, addressing method, console profiles, and cable routing before batch deployment.
What packing details matter for import planning?
The listed light size is 492.5 x 313.1 x 255 mm, with carton packing at 580 x 520 x 405 mm. Net weight is 14 kg and carton gross weight is 15.5 kg, which supports freight estimation and storage planning.
Can this model support venue and rental inventory programs?
Yes, the compact beam format, 100-240V power supply range, DMX512 control, dual prism effects, fixed gobos, and automatic error correction reset function make it practical for repeatable venue installs and rental stock planning.
