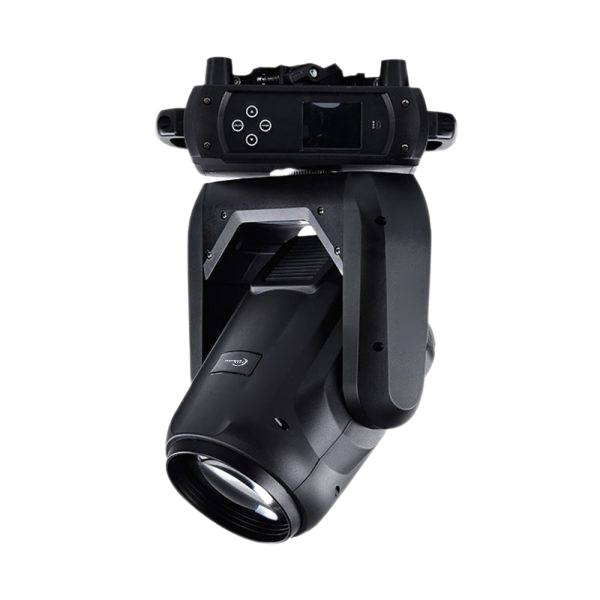

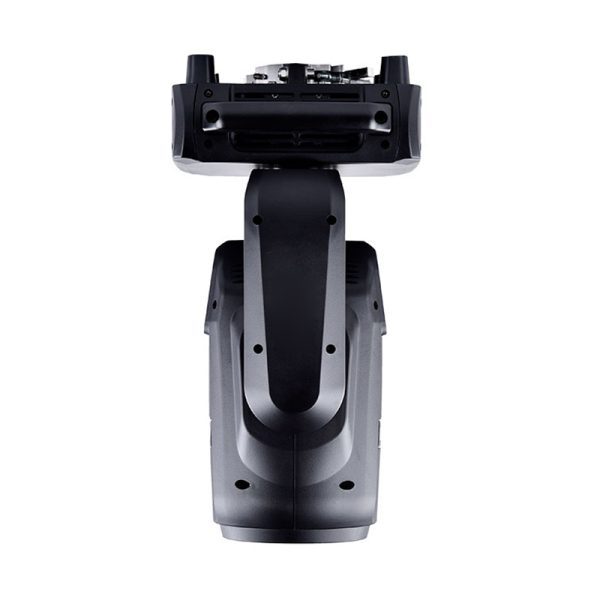

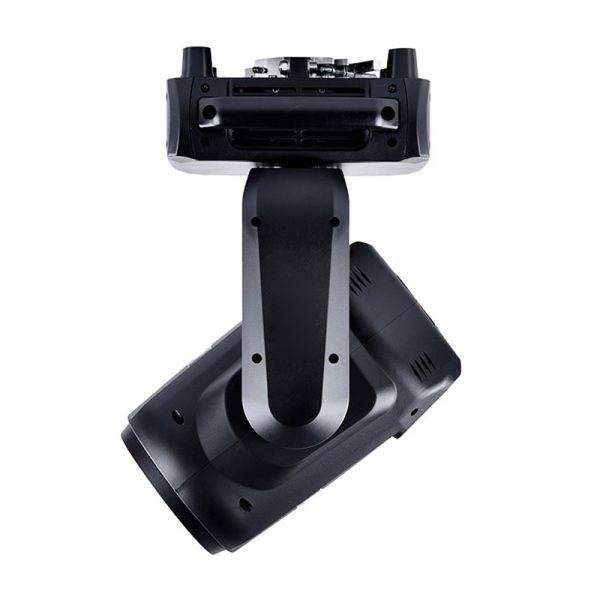

Sword 380MINI 371w mini beam moving head

Categories: Discharge-Lamp Moving Lights, Entertainment, Moving Lights
Tags: moving beam, moving head beam light, sharpy, stage lighting

Power supply100~240V,50/60H

Power rated550W(90V)

BulbOSRAM SIRIUS HRI ® 371W S  (Lamp rated life:1500H)

Color temperature:8000K


  • Sword 380MINI 371w mini beam moving head
  • Sword 380MINI 371w mini beam moving head
  • Sword 380MINI 371w mini beam moving head

Description

Power:

Power supply:100~240V,50/60H

Power rated:550W(90V)

Lamp:OSRAM SIRIUS HRI ® 371W S  (Lamp rated life:1500H)

Color temperature:8000K



Optics

Efficient optical system、Powerful light output、High quality optical lens.

1 color wheel: 13 color + white, half-color effect, rainbow effect with bidirectional rotation.

1 fixed pattern plate: 14 pattern pieces + white, with pattern dithering and pattern arbitrary positioning function.

Magnetic positioning function, convenient for initial position correction and maintenance

Prism1:  8 prism that can be rotated and overlapped in two-way

Prism2:  24 honeycomb prism that can be rotated and overlapped in two-way

Focusing angle:Zoom: 1.8°(Fixed focus )

Fog:Independent fog and soft light effect

Dimming/strobe: 0%~100% smooth dimming, multiple speed strobe effect



Control:

DMX 512 controller

DMX signal input/output: 3-pin XLR signal line interface



Movement

Horizontal:540° (16bit Precision scan)

Vertical:270°(16bit Precision scan)

Reset function with automatic error correction



Size and Packing:

N.W:14KG

G.W(Carton):15.5KG

Light size:492.5*313.1*255mm

Package (Carton):580× 520 × 405mm
