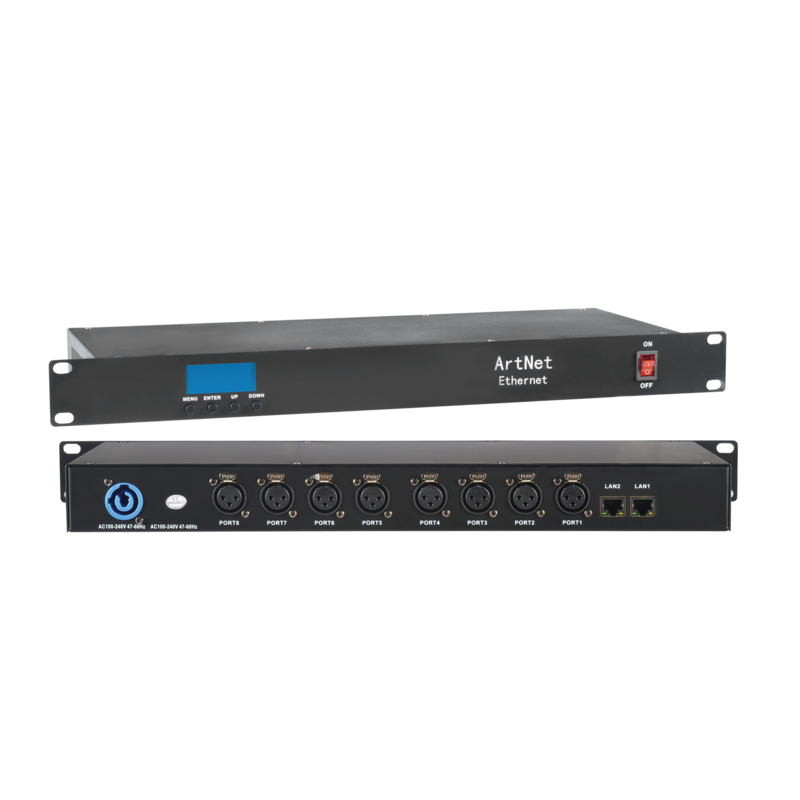

Description
Technical parameters:
·Network signal: ART NET TCP IP
·Number of signal channels: 8-way DMX512 output and input
·Working voltage: AC 100V~240V 47/60HZ
·Net weight 3KG
Functional features:
1.Support RDM
2.CPU uses advanced ARM Cortex-M4F
3.Each channel of output signal is independently photoelectrically isolated, and the isolated power supply is 2000V DC
4.Supports all consoles of ART NET network protocols, such as Pearl Expert, Touch Tiger, MA, Hog, etc.
5. It can convert conventional DMX512 signals into ART NET network signals.
6. The signal output XLR uses the original Swiss NEUTRIK three-core socket (five-core socket is optional)
7. The device firmware can be upgraded via the network
8. System parameters can be set via the LCD screen or the network.
