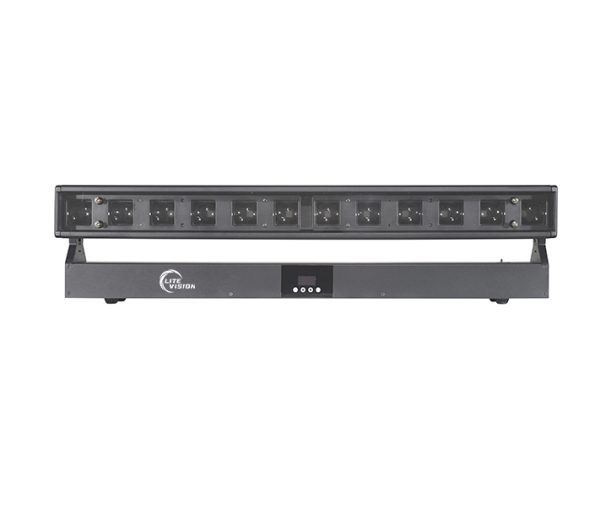

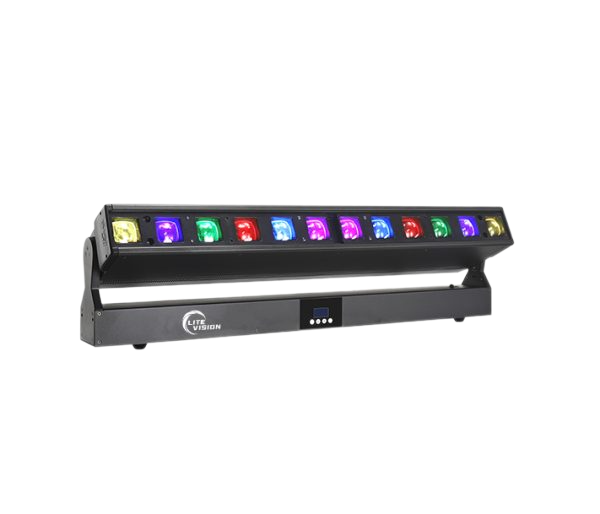

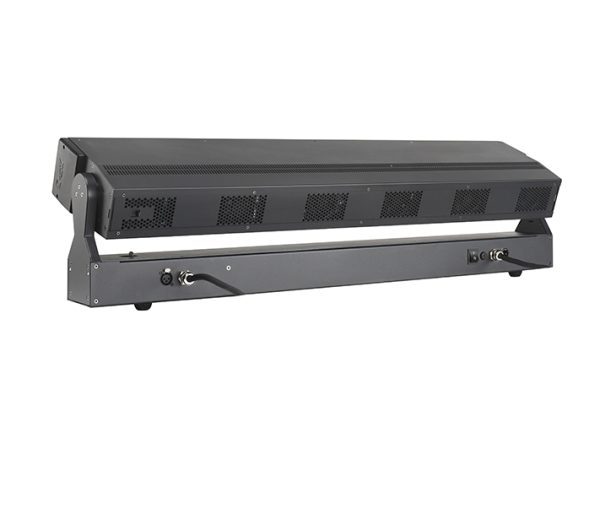

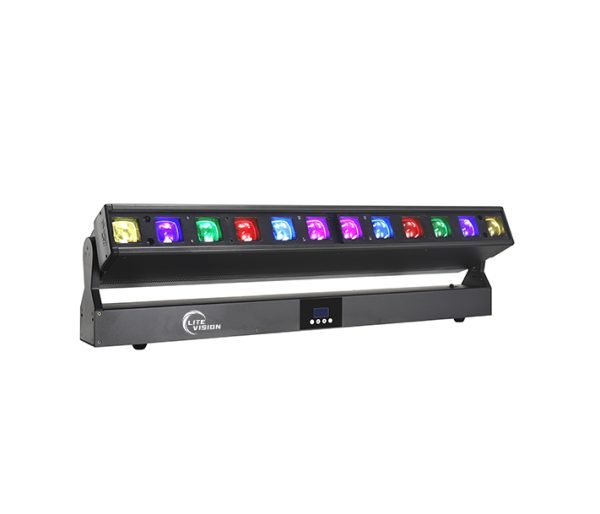

Bar M1240Z is a potent LED bar effect fixture with light source of 12 x 40 watt RGBW 4in1 LED engine, each LED can be controlled individually. Built-in with multiple macro functions, excellent color mixing system, paralleled beams, the tilt of the fixture can scan with wide zoom 3.5°~40°, the distance of each single LED is able to remain equal when 2 and more lock & combine together.
Electrical
Input voltage: 100V-240V 50-60Hz
Input power: 600W, PF≥0.98
Maximum input current: 6 A
Light source
Light source: OSRAM 40W *12 4in1 RGBW
LED module expected lifespan: 50000 hours
Optics & Photometric Data
Zoom range: 3.5°~ 40°
Effect configuration
Linear color temperature 2800k-8000k
Preset 33 macro effects
Each LED can be controlled individually, colors & shapes effects edit and combine at will
Fixture Movement Parameters
TILT=209° – 16 bit
Electronic Control Technology
Channel: 17Ch (STANDARD) / 57Ch (EXPANED)
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3; RJ45 (optional)
Menu display: 1.77” color LCD screen; choice of Chinese and English language, menu available to display 180°reversely
Intelligent control, electronic sensors testing, fan intelligent detection and control
Eco mode (sleep mode when standby)
Non-touching magnetic encoder positionable system for pan-tilt
Size& Weight
Fixture size: (1020X318X106) mm
Road case size: (1078X835X583) mm (3 positions)
Road case weight: 30.2 kg
Fixture net weight: 20.5 kg
Working Conditions
Working environment temperature:-20℃~ 40℃
Protection rate: IP 20
