Description

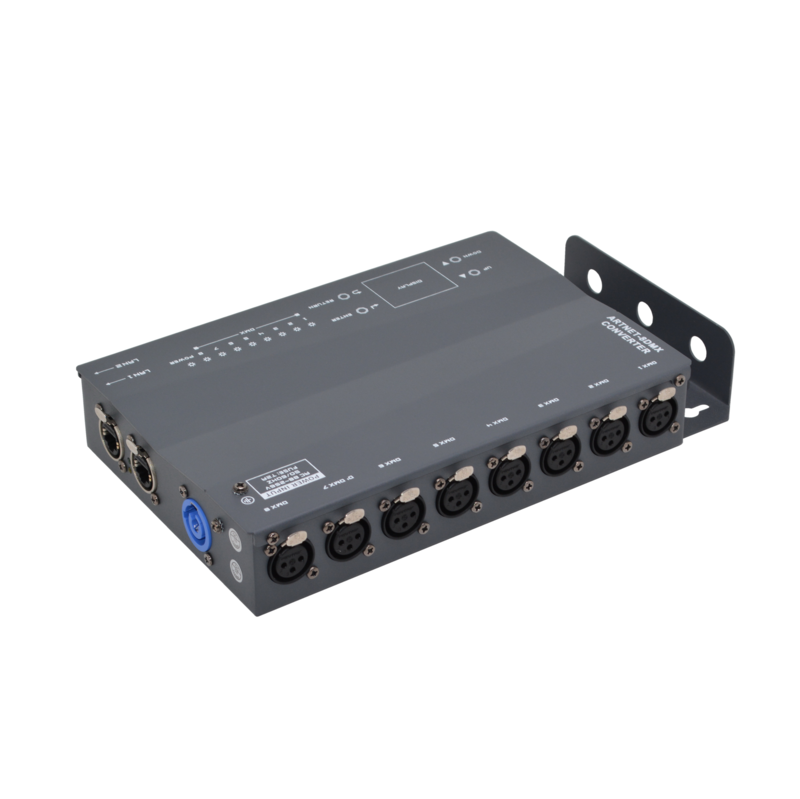

MINI artnet 8 ways
Supports 8 ArtNet universes, total 4096 channels.
Serial connection possible, which can control 32768universes, a total of 16777216 channels
Ethernet //O based on high speed switch, without
linking delay.
Compatible with the following protocols: ArtNet,
DMX 512 and RDM.
It is used for extending the DMX output port of Tiger
touch, MA Console and MADRIX software.
The 8 DMX ports can all be configured as inputs or
outputs.
DMX ports: Neutrik 3pins XLR
100% electrical isolation between all in/outputs:
(problems on l port will not influence the other ports
TFT display shows parameters.)
LED indicators for each input and output
PowerCON connector is useful for any rental andmobile shows
Multiple installation methods to meet variety placesuse purpose
Wide input stable electric power supply, suitable forvoltage input of different countries.
Input Voltage:AC88~256V 50/60Hz
Dimension:270mmx160mmx45mm
Net Weight: 1.25Kg
