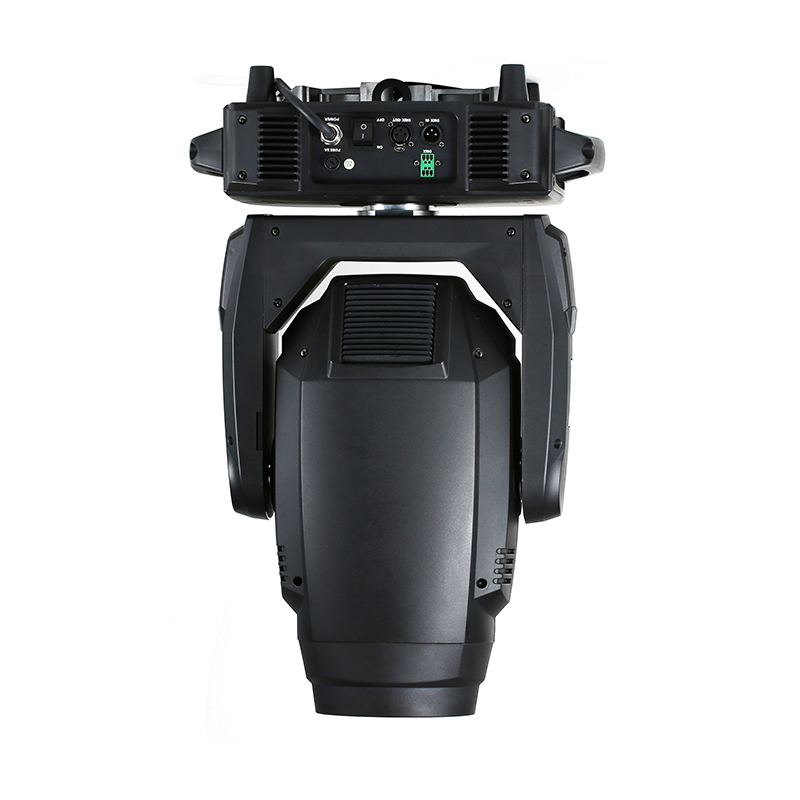

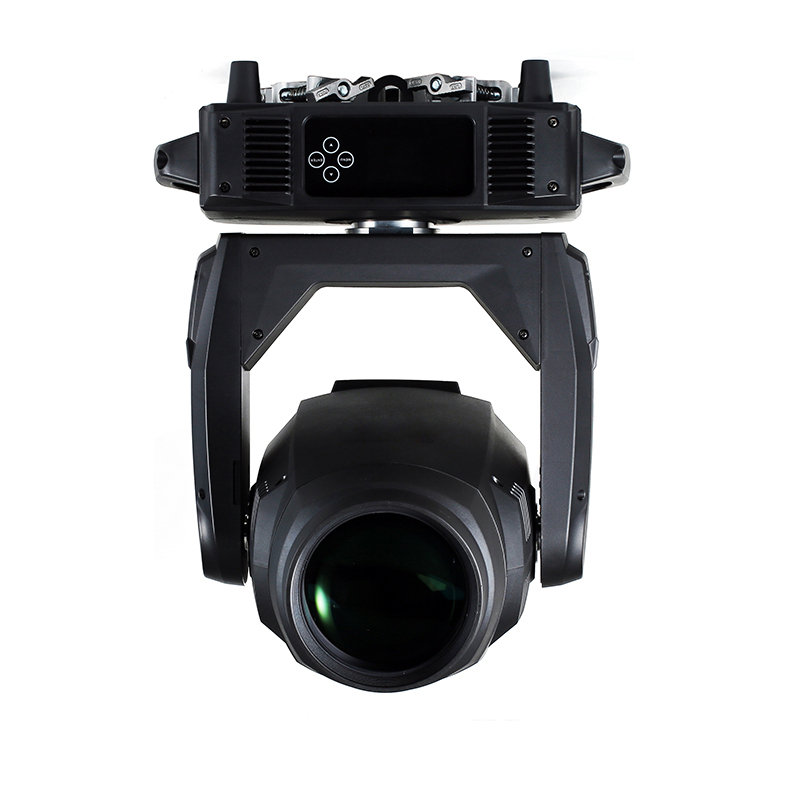

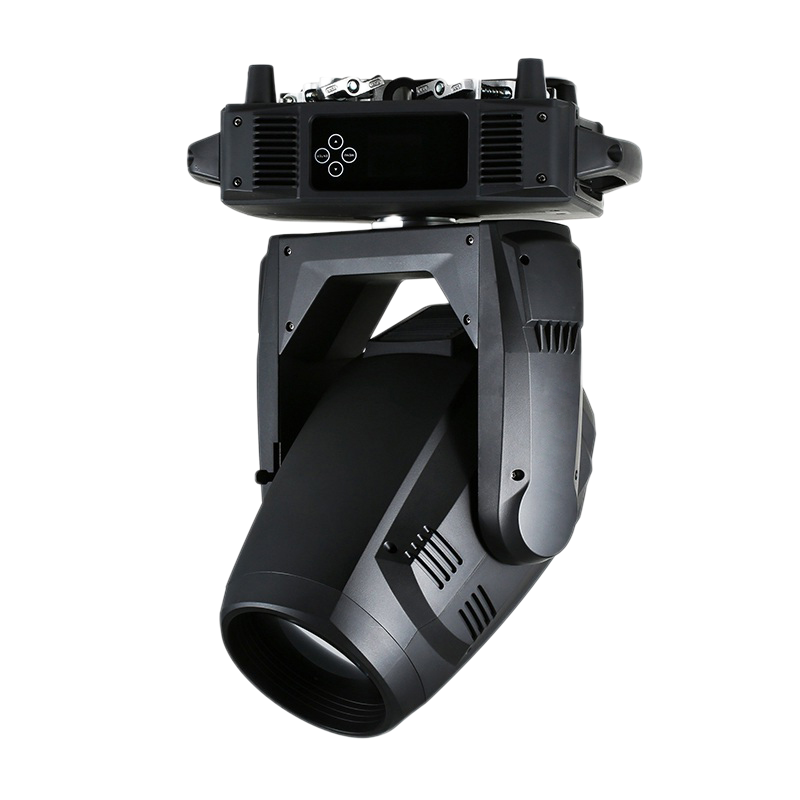

Multi C380BSW moving head beam spot wash 3in1

Electrical parameters

Voltage: AC100-240V, 50/60Hz

Power: 530W (90V)

Optical system
Light Source：SIRIUS HRI® 371W
Color temperature：7650K
Light source life：≥1500hours

Beam: 2.6°
Spot: 7-32°
Wash: 11.2-36.5°

Color system
1 color wheel: 9 color + white, half-color effect, rainbow effect with two-way rotation.

Gobo system
1 fixed gobo wheel: 13 pattern pieces + white

1 rotating gobo wheel: 8 gobos + white , Pattern jitter and pattern arbitrary positioning function.

Prism system
Prism 1: 8 prisms.    Prism2: 16prisms.

2 prisms can be stacked
Effect
Atomization：Independent atomization

Dimming：0-100% linear dimming.
Strobe: up to 25Hz, can choose random strobe or pulse strobe.

Display
Display:LCD display, Rechargeable battery，Chinese and English languages can be switched, the display can be reversed 180°

Reset detection: With out DMX signal, manual detection and automatic detection can be selected to facilitate inspection and maintenance.

software
9 built-in programs to choose from

Upgrade via DMX data cable

Can change the DMX address code from the console, remote control switch bulb, machine reset and other functions

Display lamp and light source usage time

2 channel modes: 29/25channels

Scan
X:540°（16 bit precision scan）

Y:270°（16 bit precision scan）
Automatic error correction reset function

Factory configuration

The instructions and insurance rope

Control
High temperature automatic protection

Standard DMX512 protocol

DMX shortcut interface

RDM function

Environment
IP20   -10℃-  45℃

Size and weight
Product Size：657*422*301mm
Net weight: 24.0kgs
