Electrical
Input Voltage: AC100-240V 50/60Hz
Input Power: 691W, PF≥0.98
Maximum input current: 7 A
Light source
Light source: OSRAM SIRIUS HRI® 461W
Expected lifespan:1500 Hours
Luminous flux: 23000 lm
Optics & Photometric Data
Front lens: 3 sets of high efficiency optical components with anti-reflective film, diameter of the optical lens: 148 mm
Zoom range: Beam/Spot：2°~ 45°；Wash：8°~ 50°
Color system
Four color wheels, 3 color wheels among them are equipped with CMY, 10 color filters plus 2 diffuser plates, another 1 independent color wheel has 3 color temperature plates (2500K/ 3200K/ 5600K) + 8 color filters, color rainbow rotate in both directions, stepping, sliding gradient, adding diffuser plate can diffuse the spot
Gobo system
One rotate gobo wheels, 8 gobos (unpluggable) + open, gobo rotation, positioning controllable
One static gobo wheel, 18 gobos + open, water flow, shake
Effect equipment
One independent frost filter
Dimmer: independent 0-100% dimming control
Mechanical fast strobe, multiple strobe options: pulse, synchronous, asynchronous, random
A 8-facet prism, a dual ring 8+16-facet prism, both with rotation in both directions, overlay the two prisms can achieve dual ring 16+24-facet prism effect
Fixture movement parameters
PAN=540° – 16 bit
TILT=270° – 16 bit
Electronic control technology
DMX Channels: 25 Ch/ 27 Ch/ 38 Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3; RJ45 (optional)
Menu display: 2.4” color LCD screen; choice of Chinese and English language, menu available to be displayed 180° reversely
Built-in self-rechargeable battery, menu can be edited without power supply (optional); support connecting power bank to enter the menu and edit address code and other settings
The power will automatically reduce on blackout mode, environmental friendly
Eco mode (sleep mode on when standby)
Electronic sensors testing, fan intelligent detection and control
Non-touching magnetic encoder positionable system for pan-tilt
Working conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP 20
Size & Weight
Light size: (417X417X667) mm
Flycase size:(1020X530X835) mm (2 positions)
Flycase net weight: 40 KG
Light net weight: 28 KG
Multi-Function Power for Stage Lighting Suppliers

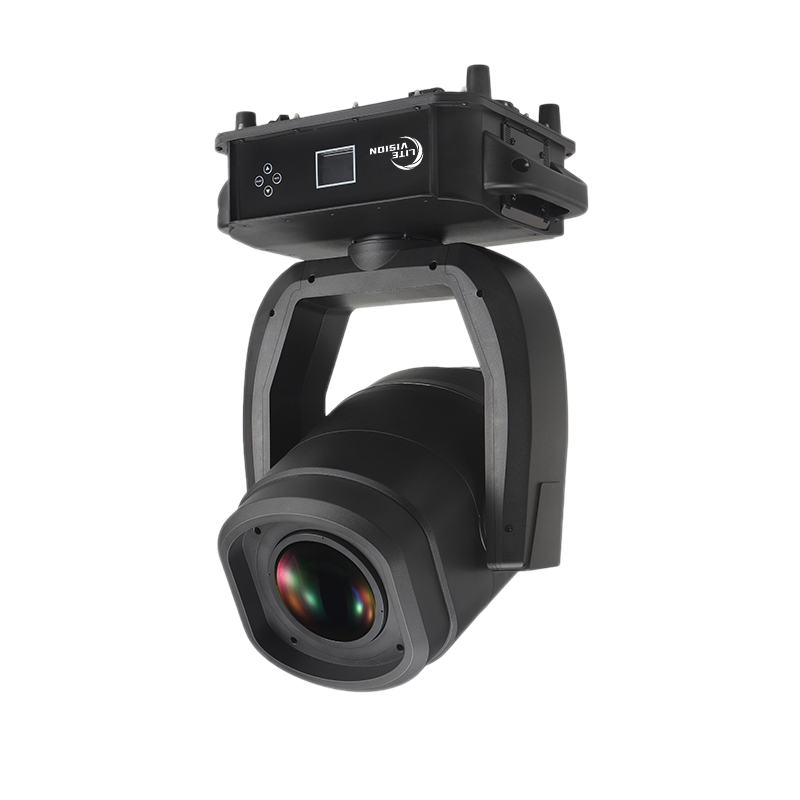

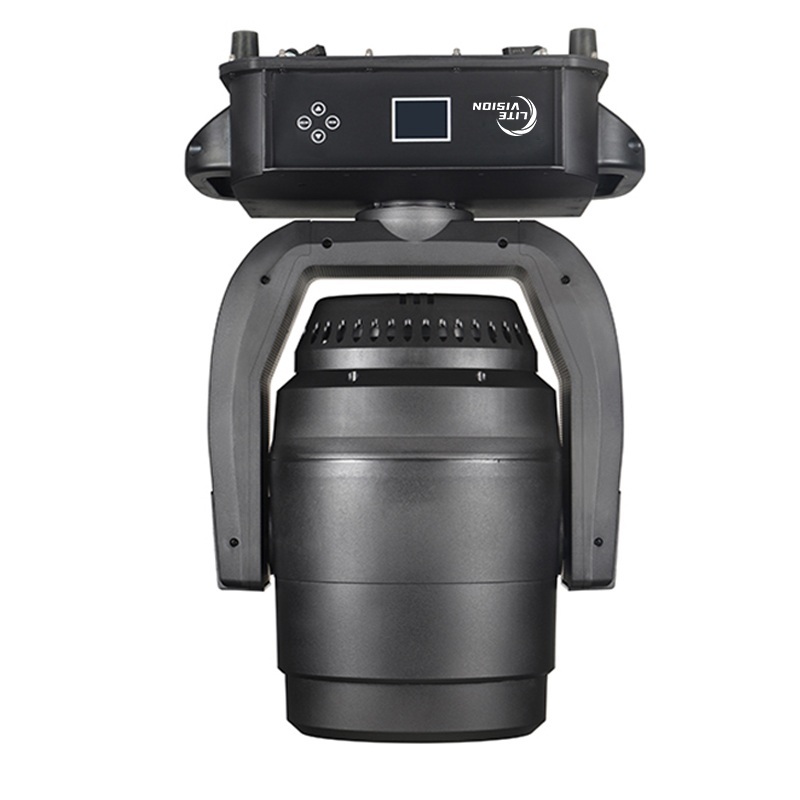

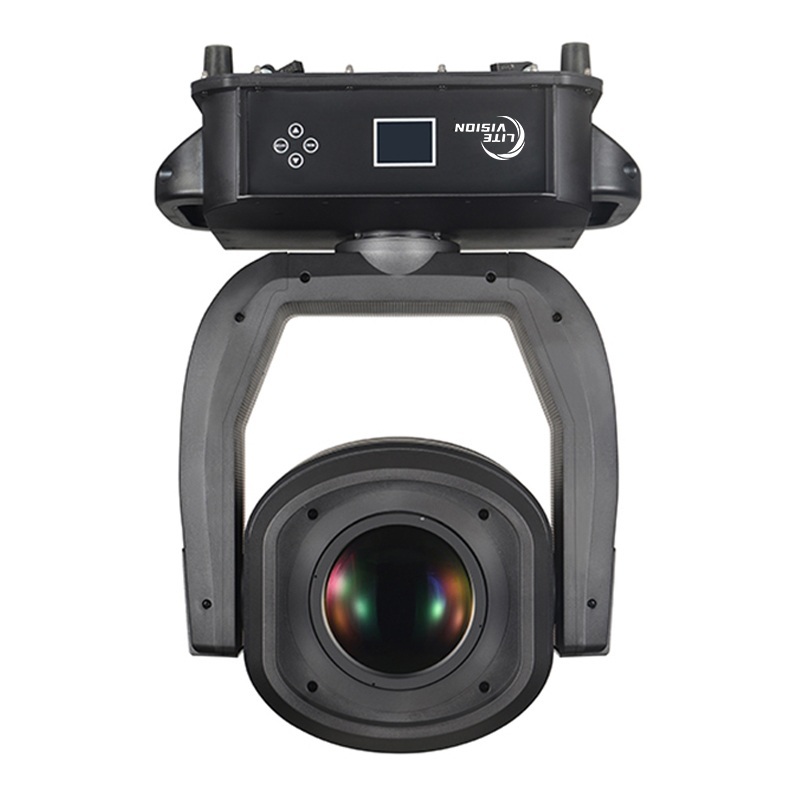

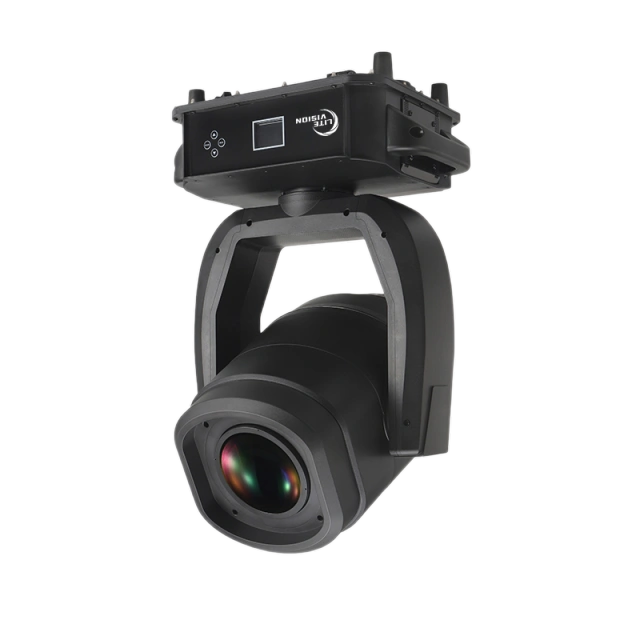

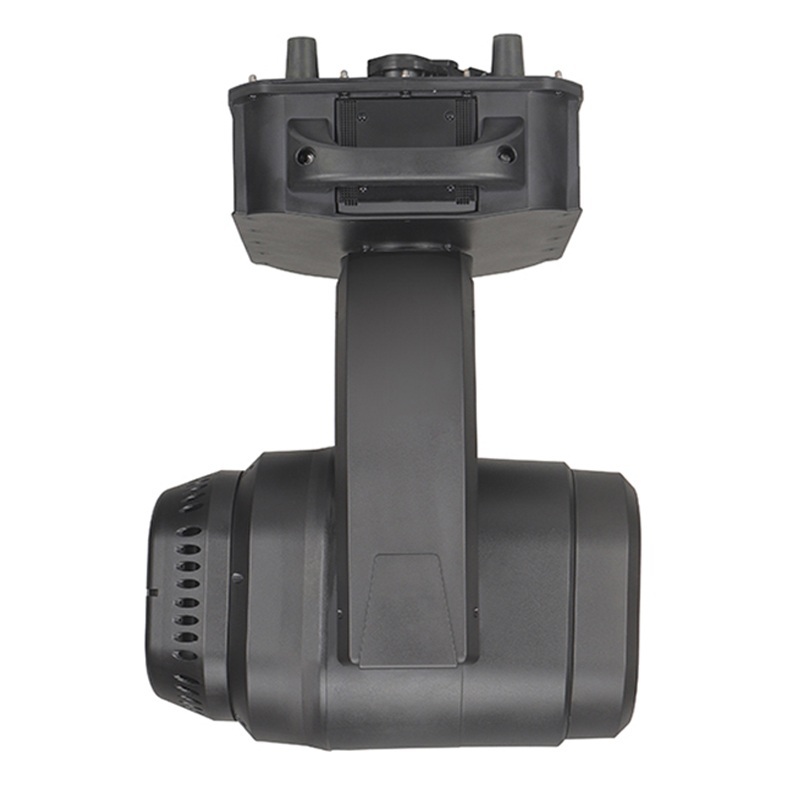

Designed for stage lighting suppliers managing high-performance productions, the Archi 461BSW offers full beam, spot, and wash functionality in a compact housing. This allows production teams to reduce fixture count while expanding their creative lighting options. The unit is weather-sealed and engineered to deliver maximum reliability for large-scale shows, tours, and installations.
Laser Beam Light Precision with Stunning Visual Clarity
This fixture’s optics deliver a powerful, sharply defined laser beam light that pierces through fog and ambient light. With advanced color mixing, adjustable frost, and multiple gobo patterns, the beam remains tight and precise. Laser stage lighting of this quality ensures visual consistency across long throws and expansive venues.
Dynamic Motion Control from a True Moving Head Laser Light
Equipped with full pan and tilt capability, the 461BSW enables sweeping movements and fluid transitions. As a true moving head laser light, it supports intricate effect programming and fast repositioning during live shows. Whether used for ambient color wash or sharp beam movement, it provides complete creative freedom.
Seamless Integration into Beam Moving Head Light Systems
With DMX, RDM, and Art-Net compatibility, the Archi 461BSW integrates easily into existing beam moving head light networks. Lighting engineers benefit from fast response times, stable communication, and consistent dimming. This ensures reliability across productions where precision is paramount.
Trusted Durability for Long-Term Outdoor Performance
Thanks to its IP65 rating, the Archi 461BSW resists water, dust, and harsh climate conditions. Stage lighting suppliers can confidently deploy it in permanent outdoor installs or mobile rigs without concern. Its cooling system is optimized for silent performance, even under intense use.
Product Advantages
All-in-One Fixture Designed for Stage Lighting Suppliers
Combining beam, spot, and wash in one, this fixture reduces equipment load while boosting functionality. It helps stage lighting suppliers streamline setup and deliver maximum impact with fewer units.
Cutting-Edge Laser Beam Light Effects
Its beam effects are razor-sharp and intensely bright, thanks to advanced laser beam light technology. The Archi 461BSW easily creates bold aerial effects and punchy mid-air visuals for unforgettable audience experiences.
Complete Moving Head Control for Live Action
As a top-tier moving head laser light, it supports full-range pan and tilt with fast speed and smooth operation. From concert stages to stadium setups, it delivers the mobility needed for dynamic, fast-paced shows.
DMX & Art-Net Ready for Networked Systems
Supporting major protocols like DMX, RDM, and Art-Net, it connects with any professional controller. This makes it easy to integrate into modern beam moving head light systems and adapt to changing rig designs.
Built for Tough Outdoor Conditions
Its rugged housing protects internal components from rain, dust, and wind. Whether for touring or fixed installs, stage lighting suppliers choose it for its reliability, cooling efficiency, and consistent output.
Looking to enhance your outdoor lighting design? Choose the LITEVISION Archi 461BSW—built for professionals, trusted by leading stage lighting suppliers, and designed for powerful performance. Contact us today.
